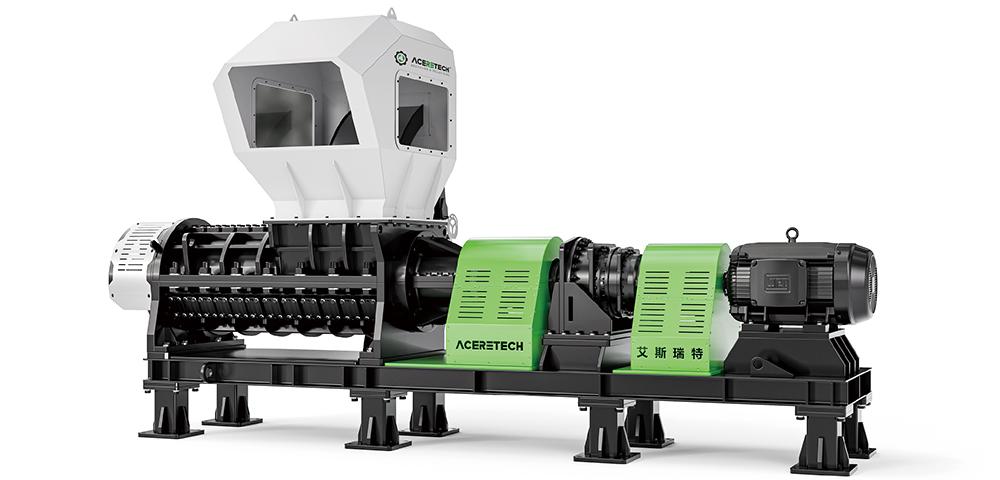

DTS Plastic Shredder for Flexible Materials (films, bags, fiber, filament, cloth, yarns) Recycling
ACERETECH DTS series shredder is a shredder specifically designed for flexible materials such as films, bags, fiber, filament, cloth, yarns etc. This shredder integrates shredding and crushing functions, and the size of the shredded material can be directly applied to the pelletizing extruder. The shredder shaft adopts disk type blades, which shred materials to specific sizes according to specific arrangements and combinations.
Specifications
| Product Parameter | |
| Model | Shredder DTS |
| Raw material | Film, woven bags ,pipes. Profiles, etc all kinds of plastics |
| Electric current | 3×380V, 50Hz; control current 220V, 50Hz |
| Capacity (Kg/H) | 1000~2000 (The output varies according to the material, shape, specific gravity, material properties, etc.) |
| Description of final product | Particle size: 20mm-100mm(can be designed as per special requirement) |
| Number of shafts (n) | 1 |
| Blade specification | Material: Forged wear-resistant rigid |
| Principal axis | Material: 40Cr, heat treatment hardness HB250-280 (tempered) |
| Stationary knife | Material: H13 steel (forging tool) Rockwell hardness 54-57 HRC |
| Coupling | The link between the main engine and the reducer adopts the drum type tooth connection, and the transmitted torque is large |
| Cutting Chamber Material | 16Mn welded shell |
| Bearing | One unidirectional thrust ball bearing, one cone roller bearing, two angular contact ball bearings with lock outer ring, and one aligning roller bearing (NSK brand) |
| Motor protection class | IP55 |
ACERETECH DTS disk type shredder can handle many kinds of material, compared with traditional shredder and crusher two step system, DTS combines shredding and crushing in one machine, the biggest capacity can reach 2ton/h.
description
Shredder Shaft
The DTS shredder shaft is forged from alloy structural steel and precision machined by CNC, meeting the manufacturing requirements for high precision. The shaft adopts a national standard spline connection to the knife disk, with high torque performance, making it easy to handle in high-speed cutting.
Motor
Main motor adopts WEG brand. High transmission efficiency, capable of converting a high proportion of input electrical energy into mechanical energy, thereby saving costs; Stable output and reliable quality.
Gearbox
The gearbox body is made of high-strength ductile iron, and the internal gear is directly used as the outer shell. Compared with ordinary planetary gearboxes in China, it has the advantages of high load-bearing capacity per unit volume, low noise, and long service life.
Discharge Port
The discharge port adopts an adjustable screen mechanism, which flexibly controls the discharge size to meet customer needs.The scraper is made of hot work die steel forging and precision machining, which enables the steel surface to effectively resist wear and reduce material loss during continuous friction with the material
PLC
Siemens PLC automatic control, can give start or stop signals to the feeding belt according to the current of the shredder.
