MS Series Adjustable PP PVC PE HDPE Waste Industail Plastic Shredder

Contact Us

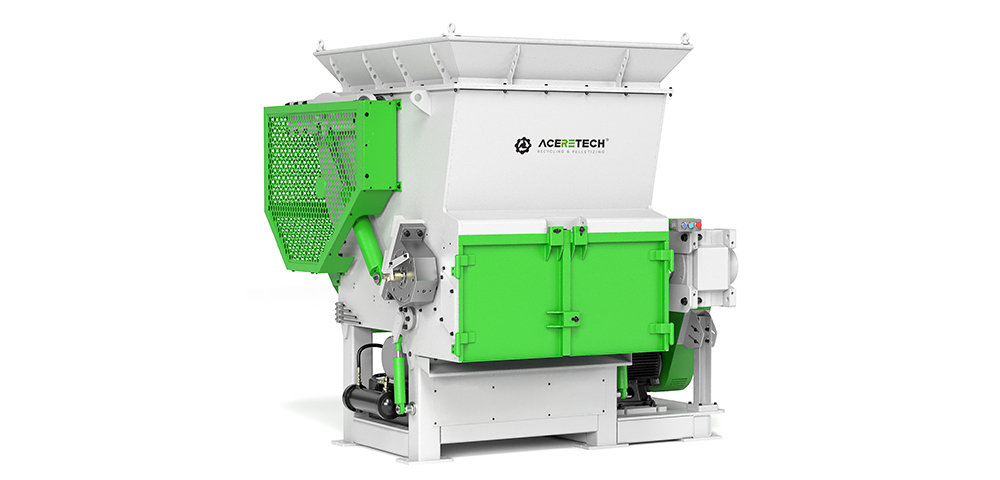

A: The ACERETECH MS series is a versatile single-shaft shredder specifically designed for high-hardness and large-volume industrial plastics. It can efficiently process materials including thick-walled PP/PE/HDPE pipes, PVC pipes, shredded plastic drums, large chunks of purge material, and various industrial plastic scraps. Its PLC control system automatically adjusts the feeding speed based on different materials (such as hard PVC or tough HDPE) to prevent clogging and improve shredding efficiency.

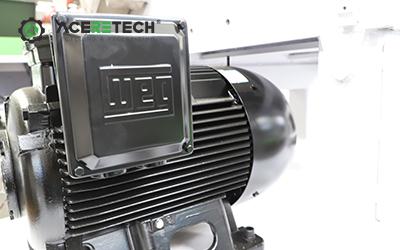

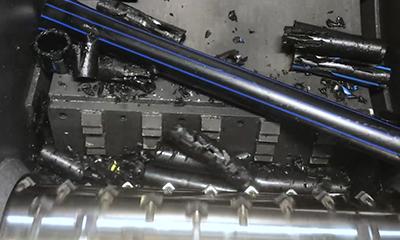

A: The MS series uses moving and stationary blades made of high-strength alloy steel (DC53), offering extremely high wear resistance. For thick-walled pipes and block materials, the machine is designed with a horizontal hydraulic feeding device that securely presses the material towards the rotating blade shaft. In addition, its transmission system is equipped with a shock absorption device, which effectively reduces the instantaneous impact force generated during the shredding process, extending the service life of bearings and reducers, and ensuring long-term stable operation in heavy-duty recycling operations.

A: Yes, ACERETECH has fully considered ease of maintenance in its design. The MS series shredder's blade shaft support uses an external bearing housing design, effectively preventing dust ingress and reducing maintenance frequency. The moving blades feature a four-corner rotatable design; when one corner is worn, it can be rotated to a new cutting edge for continued use, significantly extending the service life of a single set of blades. Furthermore, the hydraulic opening device allows operators easy access to the screen area for cleaning or replacement, reducing downtime for maintenance.

A: Yes. The output particle size of the MS series single-shaft shredder is determined by the mesh size of the screen at the bottom. ACERETECH offers customized screens with various mesh sizes from 20mm to 100mm to meet the needs of subsequent processing (such as washing lines or granulation lines). Users can choose between round or square screens based on material characteristics and production capacity requirements, and the screens feature a modular design, making replacement very simple and quick.

A: Compared to traditional high-speed crushers, the MS series single-shaft shredder features high torque, low speed, and low noise, and can handle materials with larger volumes and thicker walls. It effectively reduces dust pollution at the work site and is less prone to jamming due to excessively hard materials. In automated PP/PE recycling production lines, the MS series shredder, as a primary crushing equipment, provides more uniform pre-crushed material, thereby significantly improving the capacity and stability of the downstream granulation system.
