    Parallel Twin Screw Recycling Pelletizing Extruder For Plastic Modification

    Catalog Download    Parallel Twin-Screw Extruder for Plastics Profile | Aceretech ATE Series

    Typical applications:
    Engineering plastics, masterbatch, filler, TPE, TPR, TPV, direct extrusion

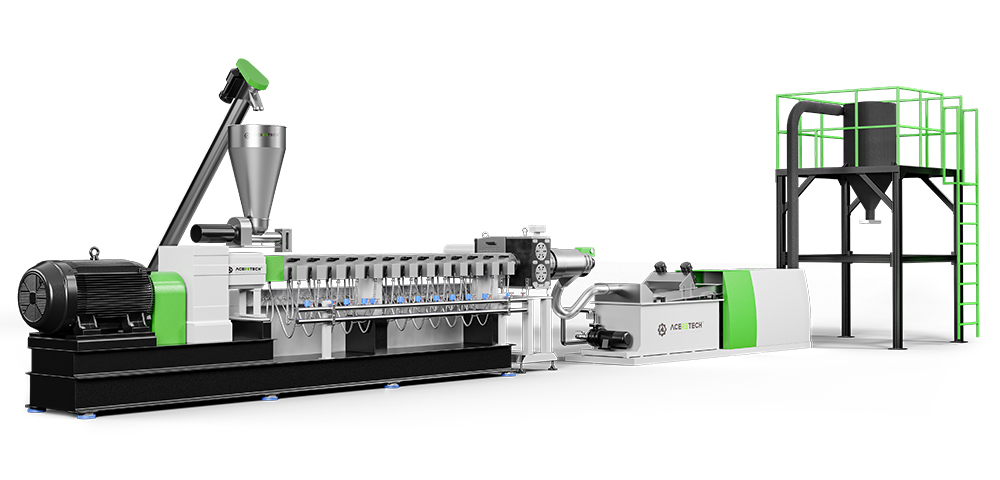

    ATE series parallel twin screw extruder is driven by motor, torque distribution gearbox, processing part, temperature control device, mold part and downstream grain cutting system.
    ATE twin screw extruder adopts the principle of modular design and standardized production of components, so as to present stable and reliable performance.
    With the principle of modularization, ATE series extruding machines can provide highly customizable solutions according to customers' process and special requirements. Based on different output torque levels, there are two types of ATE extruders: basic type and efficiency type.
    ATE co-rotating twin screw extrusion machinery combines a variety of cutting systems, such as water strands cutting system, die surface cutting system and underwater cutting system.
    Relay control and PLC control are both used in ATE electrical control system. All key electrical components are European branded to ensure significant stable performance of the control system.





    Recycling & Material

    Advantages

    Parallel Twin-Screw Extruder for Plastics Profile | Aceretech ATE Series

    01.  Excellent mixing effect

    The twin-screw design provides efficient mixing and shearing, suitable for blending and modification of a variety of plastics.

    02.   Accurate temperature control

    The equipment is equipped with a precise temperature control system to ensure that the plastic is modified at the optimal temperature.

    03.   High filler addition capacity

    The twin-screw granulator can easily add up to 50% or more fillers, such as glass fiber, mineral fillers, etc.


    04.   Flexible formula adjustment

    The formula can be quickly changed and different modified plastics can be produced to adapt to market changes.

    05.   Easy operation

    The modern control system makes operation easier and reduces the skill requirements of the operator.

    06.   Energy saving and environmental protection

    The efficient granulation process reduces energy consumption and promotes the recycling and reuse of plastics, which meets environmental protection requirements.

    Contact Us

    Specifications


    Machine Size
    		 ATE35
    		ATE52
    		ATE65ATE75 ATE95
    Dia. of screw(mm)
    		 35.651.462.47193
     L/D
    		32-64 32-64
    		32-64 32-64 32-64
    Screw Speed Max(rpm)
    		 600 600
    		600 600 600
    Torque Per Shaft(Nm)
    		1154156759902365
    Specific TorqueT/A3
    		 4.25.24.84.65
    Output(kg/h)
    		40-80150-250200-400300-700550-1500


    Composition and operation process

    Overview

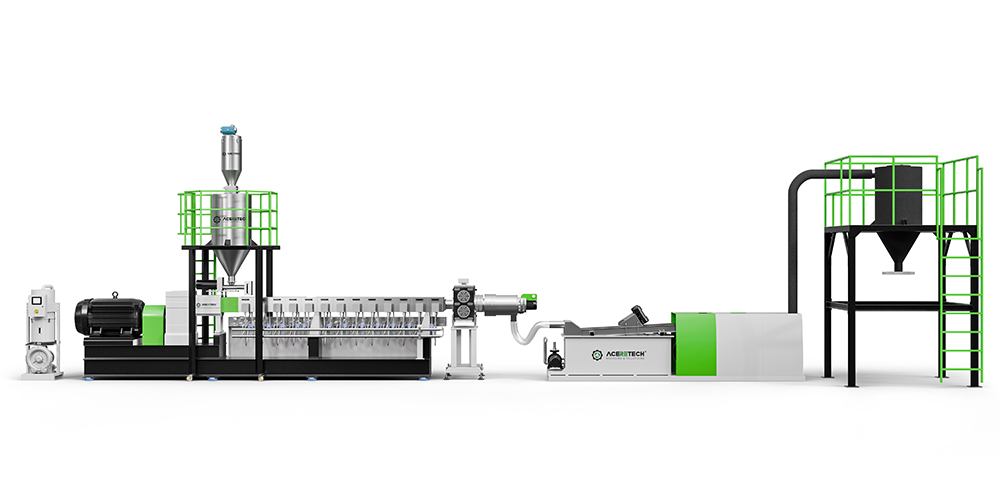

    ATE parallel twin-screw plastic recycling pelletizer

    View Detail


    Material transport

    screw conveyor transports crushed materials
    Screw Loader

    Lumps or thick flakes after crushed, conveyed into the single screw extruder by screw loader, then, compress, plasticize in the extruder and removed volatiles and moisture by vacuum system, after filtering through the filtration system, to pelletize into granules. Depending on the different screw diameters of single screw, the typical capacity can cover from 100kg/h to 1000kg/h,Loading motor power: 2.2 kw. Conveying pipe made with stainless steel material, pipe inner thickness is 2mm, pipe diameter is 102mm.

    main feeder (volumetric)
    Main feeder (Volumetric)

    Metal detector can be combined with belt conveyor, and can interlock with contrl system, to warn and stop the system, in case that metal is found in feeding.

    Gear Box

    pelletizer gearbox
    Gear Box

    The gearbox will reduce the motor speed to the screw shafts speed and distributes it to the two output shafts.Low-noise, high torque output.

    Double Screw Extruder

    parallel twin-screw extrusion
    ATE Parallel Twin Screw Extruder

    The twin screw extruder will gently plasticizes the materials.our unique bi-metal twin screw extruder has greater homogenization efficiency and long life time.

    check the light tubes in the material silo
    Silo Light Tube

    Can watch the working state of the machine.

    vacuum degassing system
    Vacuum Degassing System

    This vacuum  system will remove  the volatile in the agglomerates and improve the quality of granules. It equipped one-channel value to avoid water back-flowing.

    cast copper and aluminum heater
    Cast Copper and Aluminum Heater

    Cast copper and aluminum heater , easy to assemble and disaassemble. Faster heating and low energy waste.

    soft water cooling system
    Soft Water Cooling System

    Material of input and output pipes is stainless steel. Manual valves to adjust flowing rate of cooling water; solenoid valves are to control opening and closing of cooling water flowing in.

    Filtration system

    none-stop piston type filter
      None-Stop Piston Type Filter
    • A regular single-plate/piston double-station screen changer or non-stop double plate/piston four-station can be installed on head of extruder to present significant filtration performance.
    •  Long screen lifetime, lower screen change frequency: Long filter lifetime owing to large filter areas.
    •  Easy to use and none-stop type: easy and quick screen change and do not need to stop the running machine.
    • Very low operation cost.
    plate type filter
    Plate Type Filter

    The Plate type filter is made in a continuous type with two filter plates. There is at least one filter working when the screen is changing.Ring-shaped heater for consistent and stable heating.

    self clean filtration of plastic pelletizer
    Self Clean Filter

    This model combines our self-developed self-cleaning filter.The new SCF self-cleaning filtration system makes non-stopping recycling extrusion, especially suitable to highly contaminated materials re-pelletizing. SCF filtration system can handle and remove up to 5% contaminates in the melt flowing, can separate the contaminates as: paper, wood, aluminum, unmelted plastic and rubbers etc.

    Pelletizing system

    plastic extrusion die head
    Die Head

    This is the most appropriate process for the need for better melt filtration and higher production. In the first stage,two or more single screw extruders can be designed for the two-stage pelletizing production line, and then they can enter the second-stage extruder at the same time.



    water ring pelletizer
    Water Ring Pelletizing System
    • Self-adjusting pelletizing head for the best granulate quality and long uptime thanks to consistently correct blades pressure.
    •  RPM of rotatory blades is automatic based on melt extruding pressure.
    • Easy and fast pelletizer blades changeover, without adjustment work saves time
    strand pelletizing
    Strand Pelletizing

    The strip-shaped Melted plastic strands passes through the cooling water tank and is quickly cooled and solidified. During the cooling process, the strip is pulled out by the traction device, maintaining a certain speed and stability. Then, the strip enters the pelletizer and is cut into pellets of a certain length by the rotating cutter.



    under-water pelletizing system
    Under-Water Pelletizing System

    Highly automatic pelletizing system. It is suitable for materials with high MFI and high production capacity requirements. This system includes pelletizer, valve, conveying pipeline, dewatering vibrating screen, silo.



    Vibration Dry

    dewatering vibrating screen
    Vibration Dry
    • Advanced dewatering vibration sieve combing with horizontal-type centrifugal dewatering present high performance dried pellets and lower energy consumption.
    •  Assemble sieves: The sieves are installed and fixed by screws instead of welding, so you can change the sieves easily in the future.
    Strip-shaped plastic particles
    Plastic Particles

    Final output: plastic particles,the plastic pellets can be re-used for producing high quality plastic products once again.



    Packing System

    plastic pellet storage silo
    Packing System
    • Final qualified granules store here，the drying shaker together with the horizontal centrifuge can get a good drying result, and less energy consumption.
    • Capacity online monitoring & Quantitative weighting system.
    Material transportGear Box Double Screw Extruder Filtration system Pelletizing system Vibration Dry Packing System

    FAQ

    Q1: What are the primary applications of the ATE series parallel twin-screw extruder?

    A: The ATE series is a high-performance system designed for plastic modification and compounding. It is widely used for color masterbatch production, functional masterbatches (like flame retardants or UV stabilizers), polymer blending, and filling (such as CaCO3 or Talc). Its co-rotating parallel twin-screw design provides excellent mixing and shearing capabilities, making it the preferred choice for compounding facilities requiring high dispersion and homogenization.

    Q2: How does the ATE series ensure superior dispersion and mixing quality?

    A: Our ATE series utilizes co-rotating parallel twin-screw technology, which creates a high-intensity shearing action and inter-meshing effect. This ensures that pigments, additives, and fillers are uniformly dispersed within the polymer matrix. By precisely controlling the screw configuration and residence time, the ATE extruder achieves ultimate homogenization even for high-loading or temperature-sensitive formulations.

    Q3: Can the screw and barrel of the ATE extruder be customized for different formulations?

    A: Yes. The ATE series features a fully modular design for both the screw elements and the barrel sections. This allows users to easily reconfigure the screw geometry (feeding, melting, shearing, and venting) to match specific processing requirements for different polymers. This flexibility makes the ATE series a versatile "all-in-one" solution for R&D labs and toll compounders who handle various material grades.

    Q4: What components ensure the long-term reliability and high-torque performance of the ATE series?

    A: The ATE series is equipped with a high-torque, high-speed gearbox and a precision-engineered safety clutch to prevent overloads. The screw elements and barrel liners are made from high-wear-resistant and corrosion-resistant alloys, ensuring a long service life even when processing abrasive fillers. The integration of advanced oil cooling and heating systems ensures stable temperature control during high-intensity 24/7 industrial production.

    Q5: What auxiliary systems can be integrated with the ATE twin-screw line for a complete production solution?

    A: To provide a turnkey solution, the ATE series can be integrated with various loss-in-weight feeders, side feeders for fiberglass, and multiple pelletizing options including water-strand, water-ring, or air-cooled hot face pelletizing. Our PLC-based control system synchronizes all auxiliary units, allowing for precise control over the entire compounding process from a single interface.

    ​
