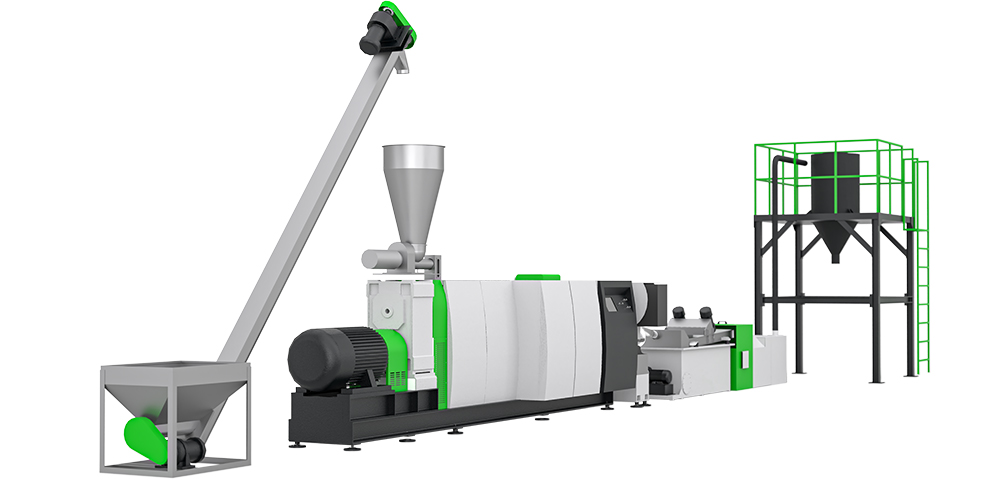

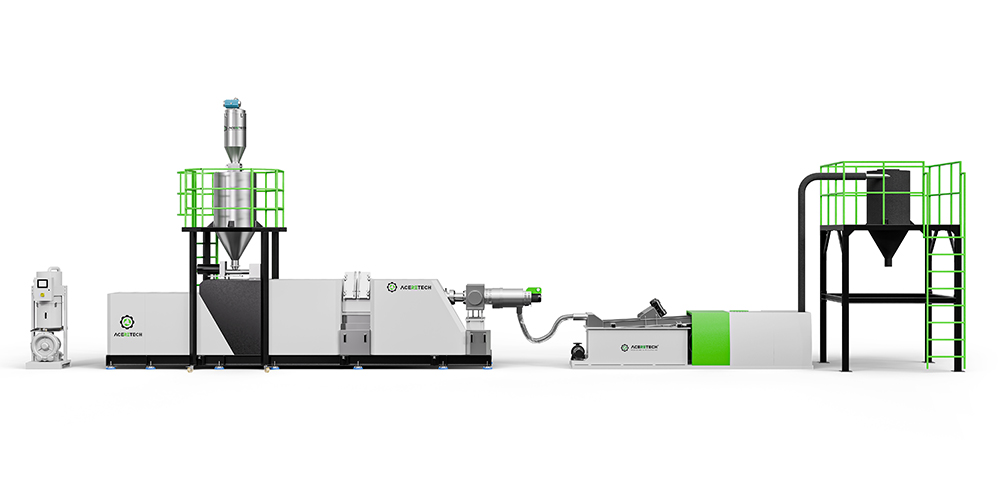

ASE 单螺杆挤出机硬质塑料回收造粒机

螺旋输送

After crushed lumps or thick flakes conveyed into the single screw extruder by screw loader, then plasticization in extrution part, volatiles and moisture removed by vacuum degassing system, after filtering through the filtration system, to pelletize into granules. Depending on the different screw diameter, the typical capacity can cover from 100kg/h to 1000kg/h.

主进料器（容积式）

It will feed the materials into the extruder. There is a stirring screw to avoid material’s blockage at the bottom of the feeder. Feeding hopper with level sensor. If you want to add additives, side feeders are optional.

机筒

High wear resistance bimetallic barrel allows the single screw extruder to greatly extend the life of key components when facing rigid plastic, ensuring stable and continuous production.

单螺杆挤出机

Our unique design single screw extruder gently plasticizes and homogenizes the materials. Our bi-metal screw&barrel has great anti-corrosion resistant, wear resistant and long life time.

Double Vacuum Degassing Port

With double vacuum degassing ports, volatile such as micro-molecules and moisture will be removed efficiency to improve the quality of granules, especially suitable for the heavy printed materials.

Remote Monitoring and Data Transmission

Realize real time monitoring parameters and rapid troubleshooting

Intelligent Control System

One-button Start
According to built-in logical sequence and processing requirement, ASP pelletizing system could be started by one button "START",to avoid mistakes that may be caused by manual
operation.
One-button Stop
Stop the running machine could be realized by one button "STOP" owing to the modular design in PLC to protect the system from damage caused by manual operation.
Emergency Stop
Press the button "Emergency stop" when
emergency happens

不停机活塞式过滤器

• A  regular single-plate/piston double-station screen changer or non-stop double plate/piston four-station can be installed on head of extruder to present significant filtration performance.
•  Longer screen life time, lower screen changing frequency.
•  Easy to use and non-stop type: easy and quick screen changing and no need to stop the running machine.
• 非常低的运营成本。

板式过滤器

The Plate type filter is equipped with two filter plates. There is at least one filter mesh working when the screen is changing. Round-shape ceramic heater for consistent and stable heating.

Self Cleaning Filter

This model combines our self-developed self-cleaning filter.The new SCF self-cleaning filtration system makes non-stopping recycling extrusion, especially suitable to highly contaminated materials re-pelletizing. SCF filtration system can handle and remove up to 5% contaminates in the melt flowing, can separate the contaminates such as paper, wood, aluminum, unmelted plastic and rubbers etc.

模头

Its core feature is that the die head surface does not contact with the cooling water directly. This design ensures that the die head temperature is uniform, and even if the output is low, the discharge can be maintained normally. Specially suitable for handling materials with low melt index.

水环造粒系统

• 自调节切粒头， 持续正确的刀片压力，可获得最佳的颗粒质量和更长的运行时间。
•   旋转叶片的转速是根据熔体挤出压力自动进行的。
• Easy and fast pelletizer blades changeover, without adjustment work to save time.

Strand Pelletizing System

The strands pelletizing system is a classic plastic pelletizing technology that is widely used in the fields of plastic recycling and compounding. It adopts a step-by-step process of "first extruding into strands, then cooling, and finally cutting into pellets". Simple structure and easy maintenance.

水下制粒系统

High automatic pelletizing system. It is suitable for materials with high MFI and high production capacity requirements. This system includes pelletizer, valve, conveying pipeline, dewatering, vibrating screen and silo.

Vibration Sieve

• Advanced dewatering vibration sieve combing with horizontal-type centrifugal dewatering present high performance dried pellets and lower energy consumption.

•  组装筛网：筛网采用螺丝安装固定，无需焊接，方便日后更换筛网。

Plastic Pellets

Final output: plastic pellets,the plastic pellets can be re-used for producing high quality plastic products once again.

包装系统

• Final qualified granules will be blown to silo and storaged in the big bag.

• Optional Capacity online monitoring & Quantitative weighting system.
