Aceretech PET bottle recycling and washing line is a modular system designed to transform post-consumer PET bottles into high-purity, reusable flakes. To ensure stable, "food-grade" output even with highly contaminated feedstock, we configure the line into six core functional modules, integrating 14 specialized stages.
Processing Stages of Aceretech PET Bottle Recycling System
1. Raw Material Intake & Pre-Purification
- Process Stages: (1) Chain Plate Conveyor, (2) De-Baler, (3) Trommel.
- Technological Value: This initial phase focuses on removing bulk contaminants like mud, sand, and stones. By using a heavy-duty trommel, we protect downstream blades from premature wear and ensure the line starts with a clean, steady flow.
2. Specialized Label & Impurity Separation
- Process Stages: (4) Label Remover, (5) Disk Separator, (6) Bouncing Screen.
- Technological Value: High-purity rPET starts with effective label stripping. Our system combines mechanical scraping with bouncing screen technology, ensuring that labels, bottle caps, and fine debris are eliminated before the crushing stage.
3. Smart Sorting & Quality Control
- Process Stages: (7) 10-Station Sorting Conveyor, (8) Bottle Sorting Machine, (9) 12-Station Manual Sorting Belt.
- Technological Value: By combining high-speed automatic bottle sorting with extensive manual inspection (22 total stations), we provide a double-layer insurance policy against color and material cross-contamination.
4. Heavy-Duty Crushing & Safety Systems
- Process Stages: (10) Belt Conveyor with Metal Detector, (11) Dual High-Capacity Crushers.
- Technological Value: Metal detectors are integrated to shield our powerful dual crushers, preventing catastrophic equipment failure and ensuring production continuity.
5. High-Intensity Deep Cleaning（The 3+3 Logic）
- Process Stages: (12) 3-Unit Hot Washer System, (13) 3-Unit Rinse Tank System.
- Technological Value: Aceretech's unique 3+3 washing logic (three stages of hot chemical washing + three stages of clean rinsing) ensures that oils, glues, and organic residues are thoroughly dissolved and removed.
6. High-Efficiency Dehydration
- Process Stages: (14) Centrifugal Dehydrator.
- Technological Value: The final step reduces moisture to below 1%, preparing the flakes for immediate high-quality pelletizing.
FAQ: Selecting the Best Plastic Bottle Recycling Machine
Q1: What is the most important factor when comparing machines?
Answer: Look for Overall Equipment Effectiveness (OEE). A machine that runs stably at 95% uptime will always be more profitable than a "faster" machine that stops frequently.
Q2: Can a single line process both HDPE and PET bottles?
Answer: While the mechanical crushing is similar, the washing settings must be adjusted due to different polymer densities. Aceretech provides modular components that can be reconfigured for different material streams.
Q3: How do you handle 10% or higher contamination levels?
Answer: By utilizing our specialized ACS-H filtration and washing logic, we ensure that even high contamination does not halt the line or degrade the final resin quality.
Empowering Your Production with Aceretech's Stability-First Solutions
Whether you are processing post-consumer PET or complex mixed plastic bottles, our systems are optimized to handle the volatility of today's feedstock. Contact our team today to learn more about our PET bottle recycling and washing line.
Ready to stabilize your ROI? Don't let unplanned downtime erode your margins. Contact our global engineering team today for a Stability & Efficiency Audit.
👉 Consult with an Aceretech Expert

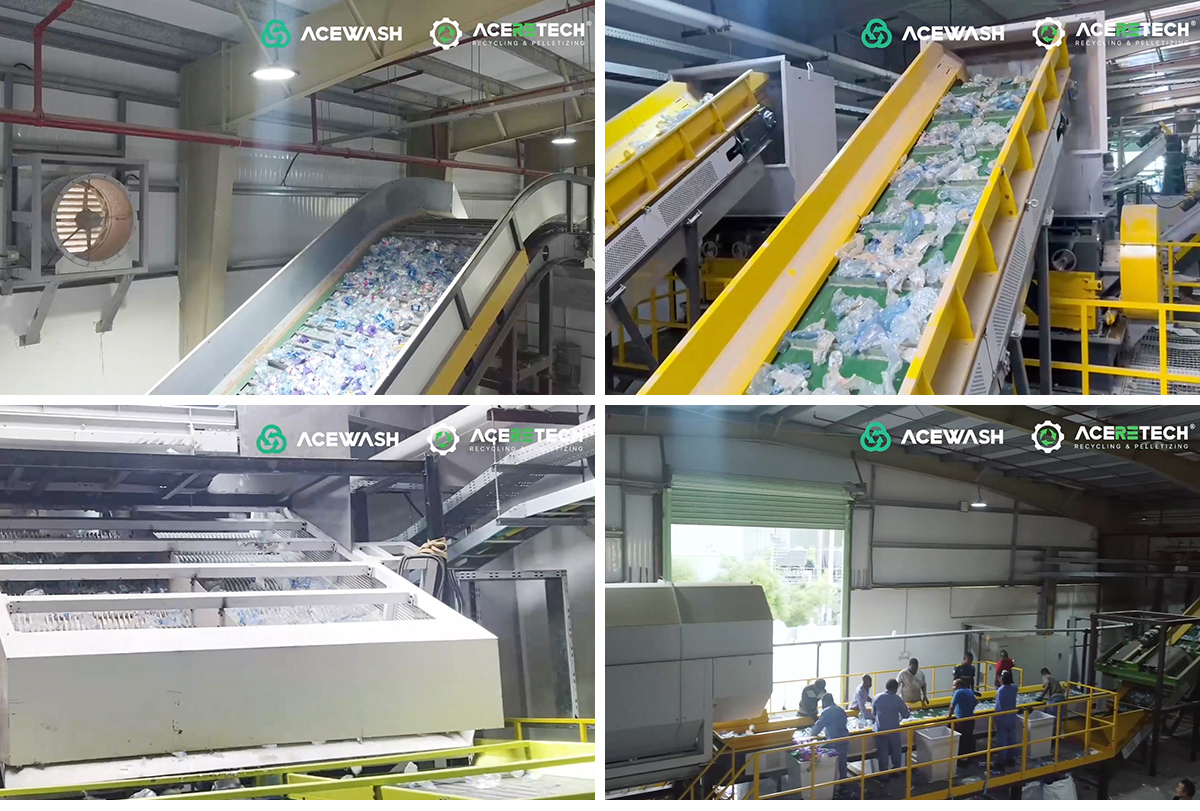

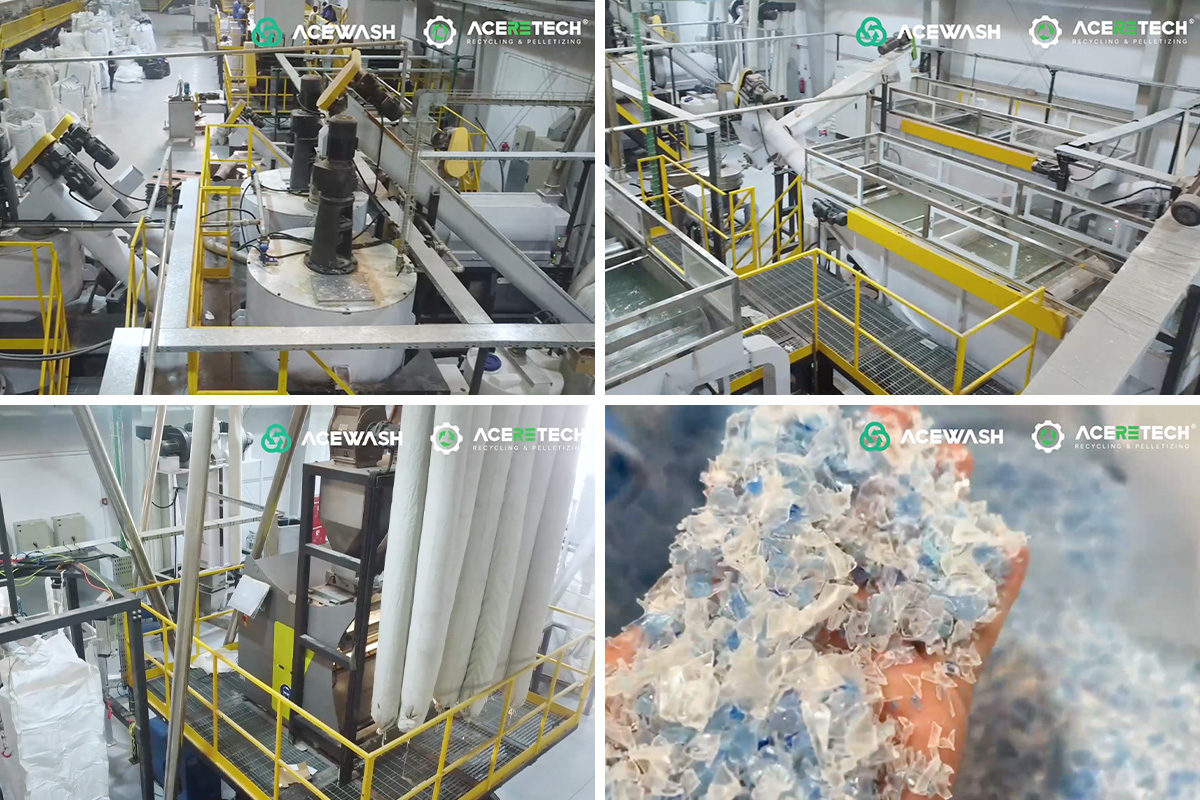

To learn more about ACERETECH PET bottle recycling and washing line, please click the link below to view the customer factory production video:
