GH 重型塑料粉碎机

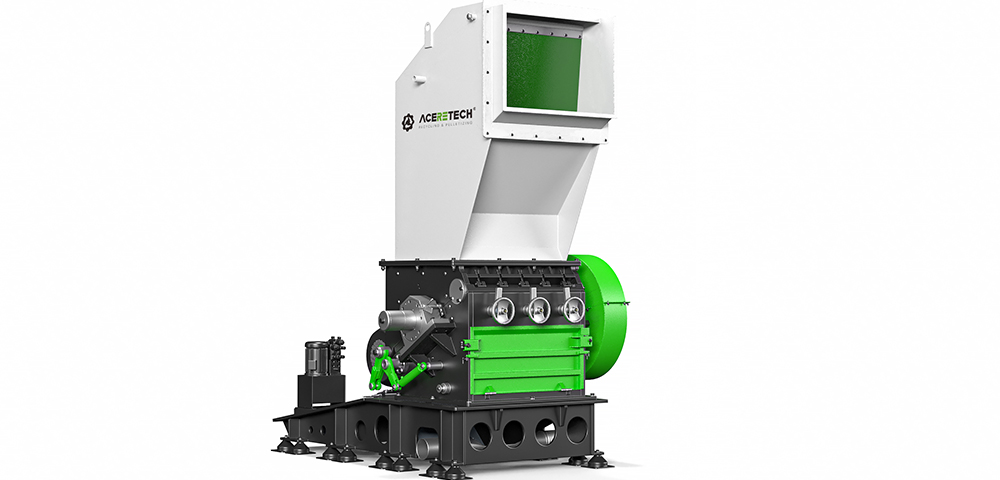

GH Series heavy-duty crushers are designed for size reduction of tough materials and meet high grinding requirements with an all-steel welded structure. GH crushers feature a robust crushing chamber and are equipped with various rotor configurations. Rotor diameters range from 700 mm to 1,100 mm, while rotor lengths range from 700 mm to 2,400 mm.

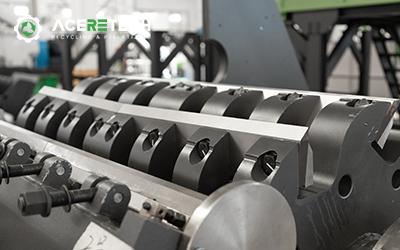

GH crushers are equipped with large rotor bearings and a ""V""-shaped rotor design, which improves cutting efficiency and reduces dust generation in the flakes. By adding a removable deflection wedge (the third fixed knife), the GH plastic recycling crusher can process a wider range of materials and quickly increase production capacity. Anti-wear plates inside the crushing chamber and external bearings help reduce the risk of contaminants entering the bearing system.

GH Series heavy-duty crushers are widely used for size reduction of profiles, pipes, films, sheets, large rigid lumps, and other tough plastic materials.
